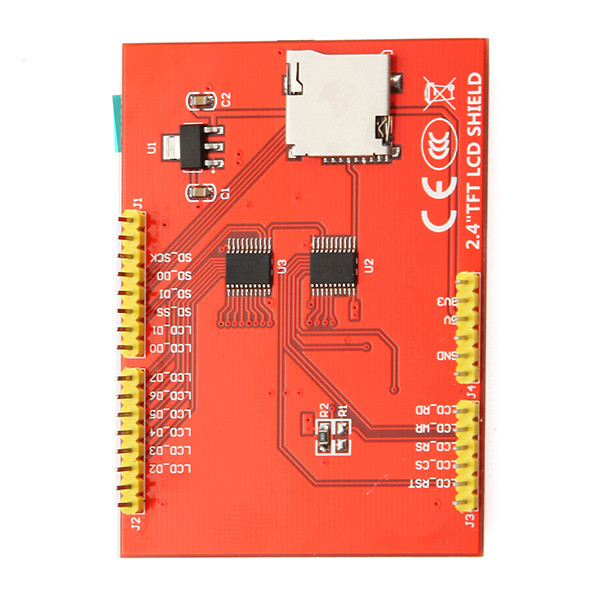

2.4” LCD TFT display for Arduino UNO/MEGA

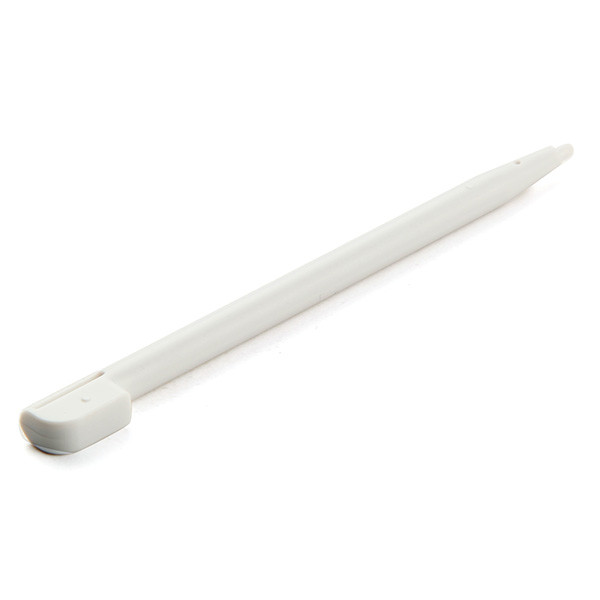

This high resolution LCD TFT screen is a convenient shield for both Arduino UNO and MEGA. The screen is touchscreen and comes with a tactile pen and SD card slot for images and graphics.

SPECIFICATIONS:

• 4 white LED backlight (controllable by transistor on digital pin)
• 18 bit color; 262 000 different colours
• Resistive touchscreen (4-wire)
• 240x320 pixel resolution
• SPFD5408 controller with built-in RAM buffer
• 8 bit digital interface with 4 control lines
• Digital pins: 5-13; Analog pins: 0-3
• SD card digital pin 12
• 5V (or 3.3V) logic level
• ILI9341 driver
• 71 x 52 x 7mm

LIBRARY:

https://github.com/adafruit/Adafruit-GFX-Library

https://github.com/adafruit/Adafruit_ILI9341
