1.8 Inch Serial SPI TFT LCD Display Module With Power IC SD Socket For Arduino

Description:

It has PCB backplane with power IC, SD card socket
It need 4 IO port at least to drive
The module port is compatible with 1602 LCD and Nokia 5110 / 3310 LCD display port

File:

Normally, the chip is Samsung ST7735. And it's code link is https://copy.com/WGLoyLSU9ihHKHfu

Important Note:

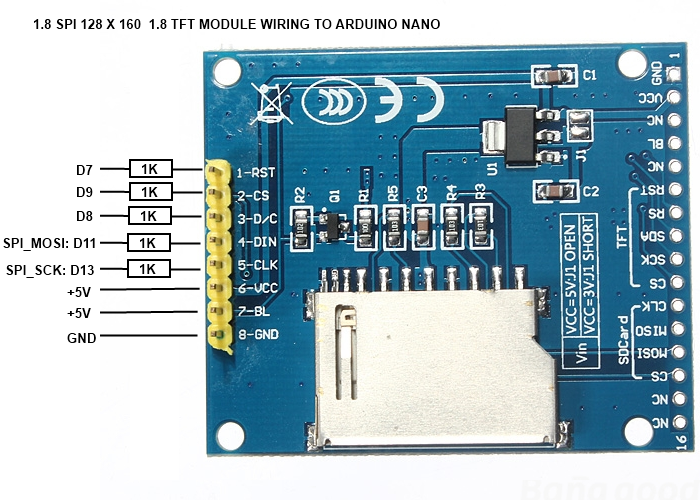

Using with Arduino, every IO port should be connected with resistance range 500 ~ 2KΩ.

Display size: 1.8inch
Dot matrix: 128 x 160
Input voltage: 5V / 3.3V
Driver IC: HX8353 / S6D02A1 / ST7735
Pin definition: 1-RST, 2-CE, 3-D/C, 4-DIN, 5-CLK, 6-UCC, 7-BL, 8-GND
Size: 54 x 34mm(L x W)
