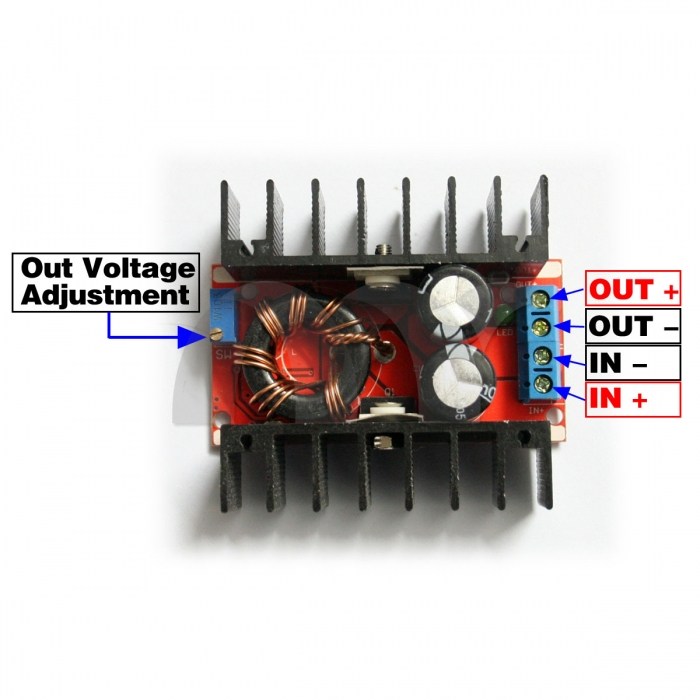

150W Boost Converter DC to DC 10-32V to 12-35V Step Up Voltage Charger Module

Input voltage: DC 10V-32V.
Output voltage: DC12V-35V(adjustable).
Output current: 10A (MAX).
Input current: 16A (MAX) (more than 10A please strengthen heatsink).
Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency: 94% (when Output 19V 2.5A Input 16V, Reference).
Output ripple: 2% (MAX).
Working temperature: industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling).
Full-Load temperature: 45 degrees.
No-load current: 25mA typical.
Voltage regulation: ± 0.5%.
Load regulation: ± 0.5%.
Dynamic response speed: 200uS 5%.
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.).
Dimension: 65mm x 35mm x 23.5mm.

Applications:
DIY an adjustable on-board power supply, you just input DC 12V, then you can get output DC 12V-35V (adjustable), But the output voltage can not below the input voltage.
DIY a booster charger.
Provide power for your electronic equipment.
Use Solar battery charging for electric accumulator.

Package included:
1 x Power Boost Module 150W
