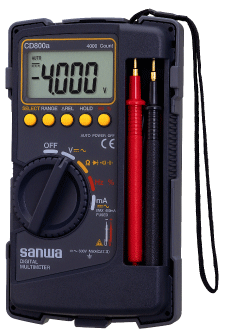

CD800A

Integrated case suitable for use and storage
3-3/4 Digits 4000 Count
Auto Power-off (Enable or Disable)
Captive test leads prevent confusion of measurement polarity
Conforms to IEC61010 and CAT III 600V Max

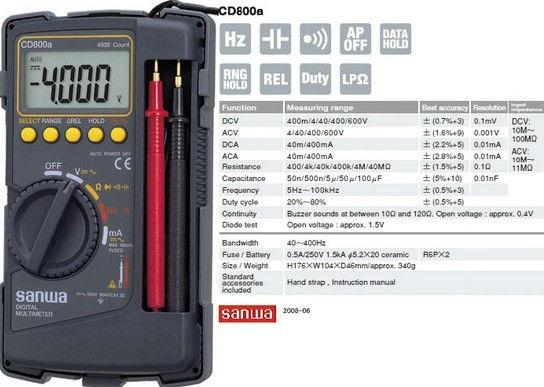

       Absolute Maximum AC Current Measurement    400mA ac
    Absolute Maximum DC Current Measurement    400mA dc
    Absolute Maximum AC Voltage Measurement    600V ac
    Absolute Maximum DC Voltage Measurement    600V dc
    Absolute Maximum Resistance Measurement    40MΩ
    Absolute Maximum Capacitance Measurement    100µF
    Functions Measured    AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance
    Maximum Frequency    1kHz
    Height    176mm
    Best Resistance Measurement Accuracy    ±1.5% + 5 Digits
    DC Current Measurement Resolution    0.01mA dc
    Safety Category    CAT III 600 V
    Capacitance Measurement Resolution    10pF
    Weight    340g
    Safety Category Voltage    600V
    Model Number p    CD800A
    Best AC Voltage Accuracy    ±1.6% + 9 Digits
    AC Current Measurement Resolution    0.01mA ac
    Best Capacitance Measurement Accuracy    ±5% + 10 Digits
    Length    46mm
    Best DC Current Accuracy    ±2.2% + 5 Digits
    Battery Type    AA x 2
    Width    104mm
    Best AC Current Accuracy    ±2.8% + 5 Digits
    Best DC Voltage Accuracy    ±0.7% + 3 Digits
    DC Voltage Measurement Resolution    0.1mV dc
    Resistance Measurement Resolution    100mΩ
    Dimensions    46 x 104 x 176mm
    Safety Category Level    CAT III
    AC Voltage Measurement Resolution    0.001V ac
