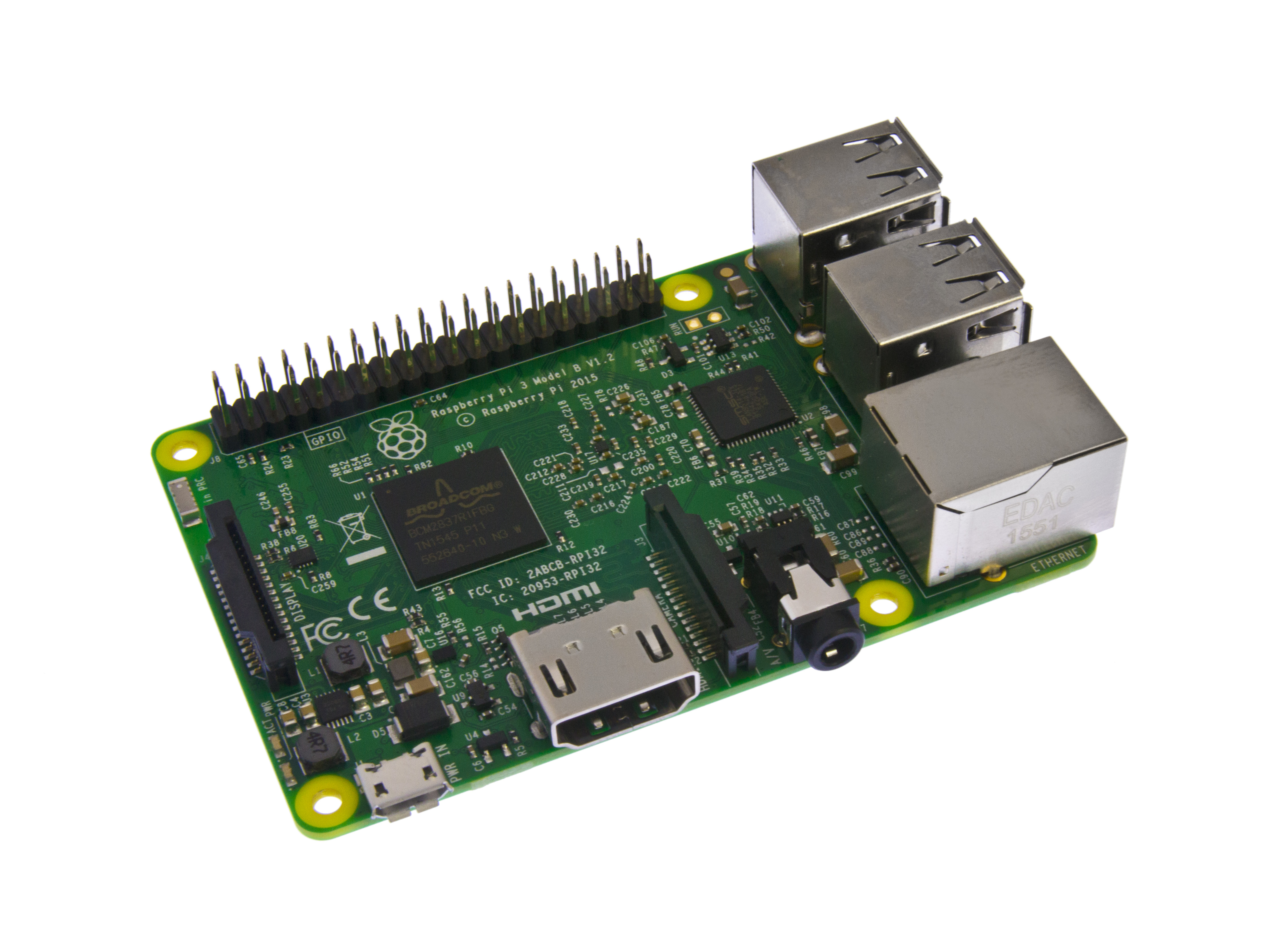

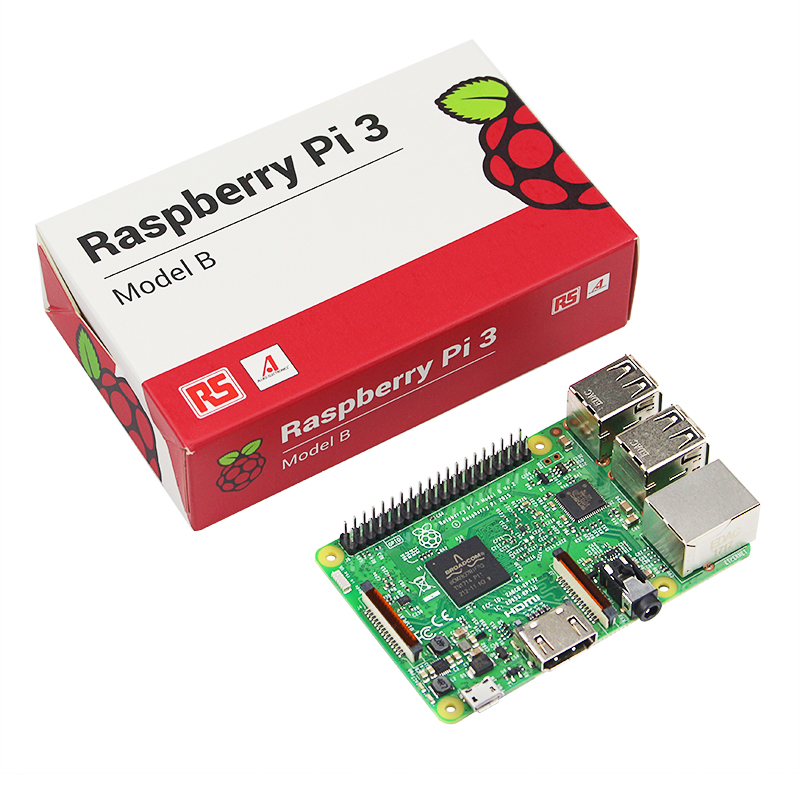

The Raspberry Pi 3 is here!  Over the past four years, the Raspberry Pi has sold eight million units – three million in the last year alone – and now on its fourth birthday a brand new upgraded Pi has been released.  We thought we’d give you the hard facts about this brand new Raspberry Pi.

New Features:

• Wifi-N Built in
• Bluetooth built in
• 1.2Ghz 64bit Quad Core
• up to 60% faster than Pi2

Wireless Radio

So small, its markings can only be properly seen through a microscope or magnifying glass, the Broadcom BCM43438 chip provides 2.4GHz 802.11n wireless LAN, Bluetooth Low Energy, and Bluetooth 4.1 Classic radio support. Cleverly built directly onto the board to keep costs down, rather than the more common fully qualified module approach, its only unused feature is a disconnected FM radio receiver.

Antenna

There’s no need to connect an external antenna to the Raspberry Pi 3. Its radios are connected to this chip antenna soldered directly to the board, in order to keep the size of the device to a minimum. Despite its diminutive stature, this antenna should be more than capable of picking up wireless LAN and Bluetooth signals – even through walls.

SoC

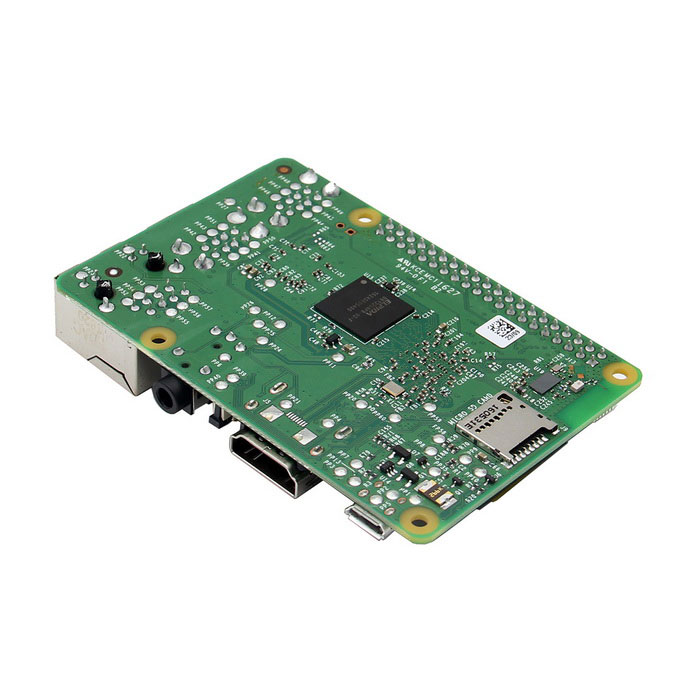

Built specifically for the new Pi 3, the Broadcom BCM2837 system-on-chip (SoC) includes four high-performance ARM Cortex-A53 processing cores running at 1.2GHz with 32kB Level 1 and 512kB Level 2 cache memory, a VideoCore IV graphics processor, and is linked to a 1GB LPDDR2 memory module on the rear of the board.

GPIO

The Raspberry Pi 3 features the same 40-pin general-purpose input-output (GPIO) header as all the Pis going back to the Model B+ and Model A+. Any existing GPIO hardware will work without modification; the only change is a switch to which UART is exposed on the GPIO’s pins, but that’s handled internally by the operating system.

USB Chip

The Raspberry Pi 3 shares the same SMSC LAN9514 chip as its predecessor, the Raspberry Pi 2, adding 10/100 Ethernet connectivity and four USB channels to the board. As before, the SMSC chip connects to the SoC via a single USB channel, acting as a USB-to-Ethernet adaptor and USB hub.

Power

You can’t get extra performance without a few sacrifices. The Pi 3 draws the most power of all, but its extra performance means it spends more time at idle. Those looking for maximum battery life should look at the Model A+ or the Pi Zero as an alternative.

Operating System

At launch, they are using the same 32-bit Raspbian userland that they use on other Raspberry Pi devices; In the near future they will investigate whether there is value in moving to 64-bit mode.

Specifications:

• SoC: Broadcom BCM2837
• CPU: 4× ARM Cortex-A53, 1.2GHz
• GPU: Broadcom VideoCore IV
• RAM: 1GB LPDDR2 (900 MHz)
• Networking: 10/100 Ethernet, 2.4GHz 802.11n wireless
• Bluetooth: Bluetooth 4.1 Classic, Bluetooth Low Energy
• Storage: microSD
• GPIO: 40-pin header, populated
• Ports: HDMI, 3.5mm analogue audio-video jack, 4× USB 2.0, Ethernet, Camera Serial Interface (CSI), Display Serial Interface (DSI)

OS Resources:

• Downloads (redirect to Raspberrypi.org)
• Noobs
• Raspbian
• Ubuntu Mate
• Snappy Ubuntu Core
• Windows 10 IoT Core
• OSMC
• OpenELEC
• PiNET
• RISC OS

Links:

• Raspberry Pi Foundation
