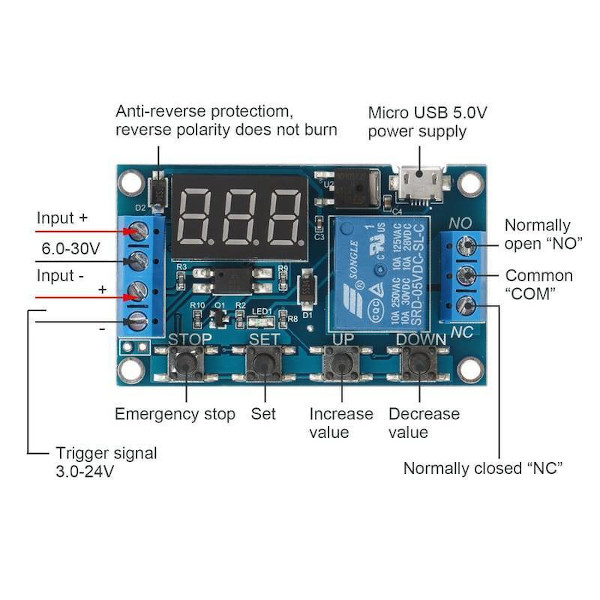

5V Timer Switch Relay Module With Digital LED Display.

Specifications:

• Voltage: DC 5V~36V.
• Trigger Signal Source: High voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system’s anti-jamming capability (you can also connect them on common ground).
• Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A.
• Quiescent Current: 20mA
• Operating Current: 50mA
• Working Temperature: -40℃~85℃
• Clocking (Time Delay) Range: 0.1seconds to 999minutes
• Size: 60*34*12mm / 2.36*1.33*0.47″
