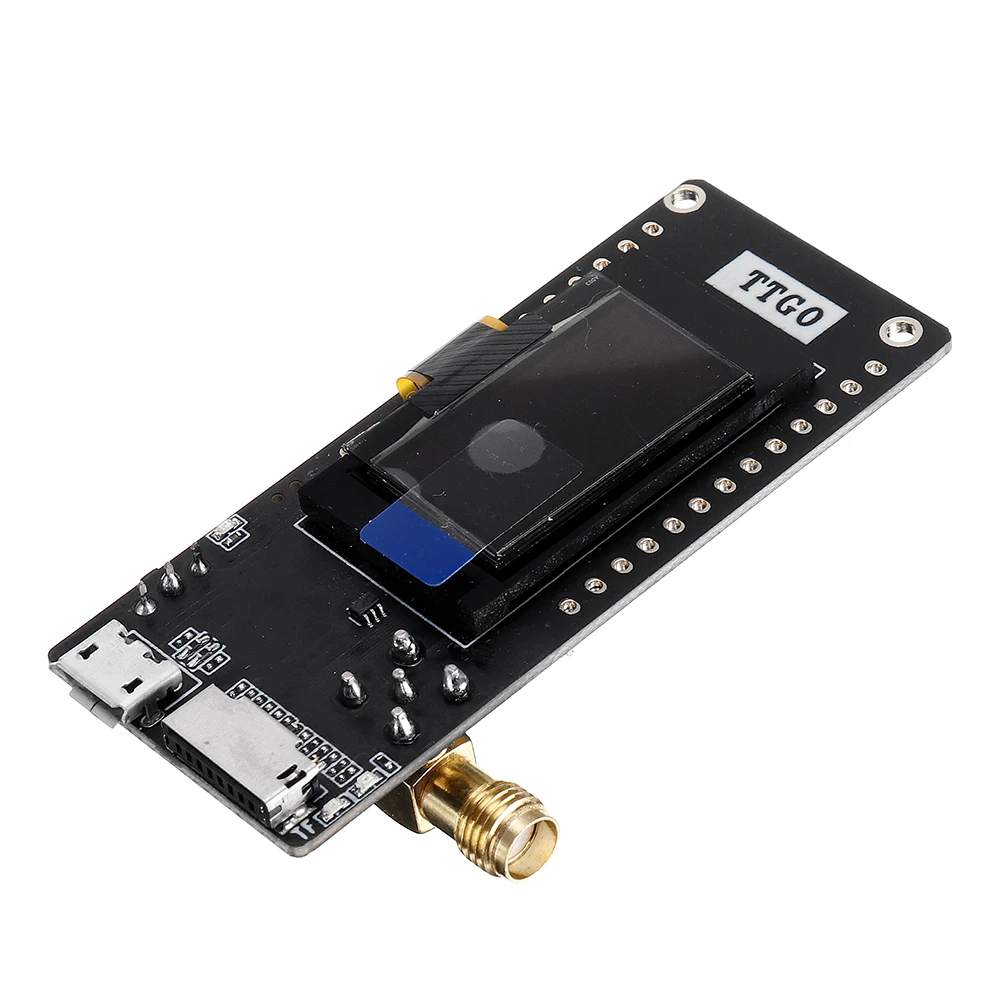

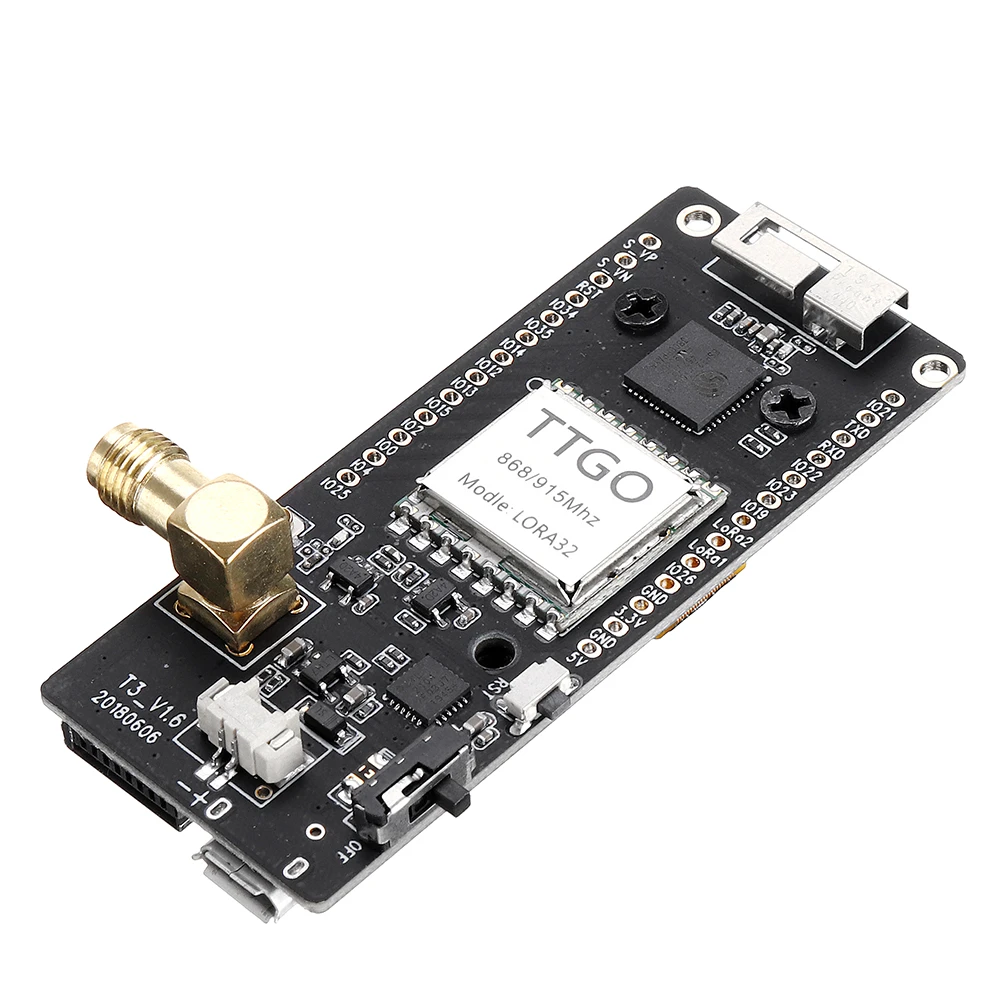

LilyGO TTGO LoRa32 T3_V1.6 433Mhz OLD 0.96 "SMA ESP32 WiFi Module.

• Working voltage: 8 ~ 3.7v
• Acceptable current ： 10 ~ 14mA
• Transmit current:
  • 120mA @ + 20dBm
  • 90mA @ + 17dBm
  • 29mA @ + 13dBm
• Operating frequency: 433/868 / 915MHz
• Transmit power: + 20dBm
• Receive sensitivity:
  • -139dBm @ LoRa & 62.5Khz & SF = 12 & 146bps
  • -136dBm @ LoRa & 125Khz & SF = 12 & 293bps
  • -118dBm @ LoRa & 125Khz & SF = 6 & 9380bps
  • -123dBm@FSK&5Khz&1.2Kbps
• Frequency error ： +/- 15KHz
• FIFO space ： 64Byte
• Data rate ：
  • 2K ~ 300Kbps @ FSK
  • 018K~37.5Kbps@LoRa
• Modulation Mode ： FSK, GFSK, MSK, GMSK, LoRa TM ， OOK
• Interface form ： SPI
• Sleep current ：
  • 2uA @ SLEEP
  • 5uA @ IDLE
• Operating temperature ： -40 ℃ - + 85 ℃
• Digital RSSI function
• Automatic frequency correction
• Automatic gain control
• Fast wake-up and frequency hopping
• Highly configurable data packet handler
• SMA Antenna
• TP4054
