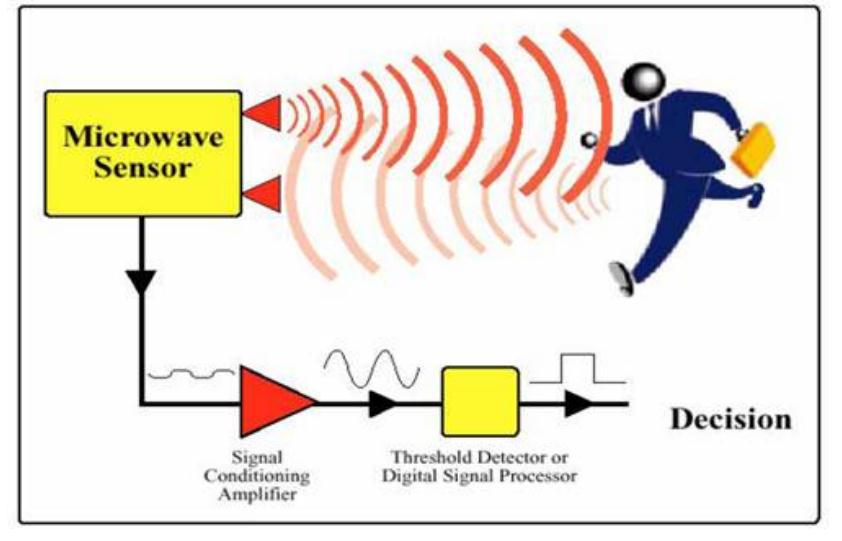

HB100 Miniature Microwave Motion Sensor is a X-Band Bi-Static Doppler transceiver module. Its built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, make it ideal for OEM usage in motion detection equipment.

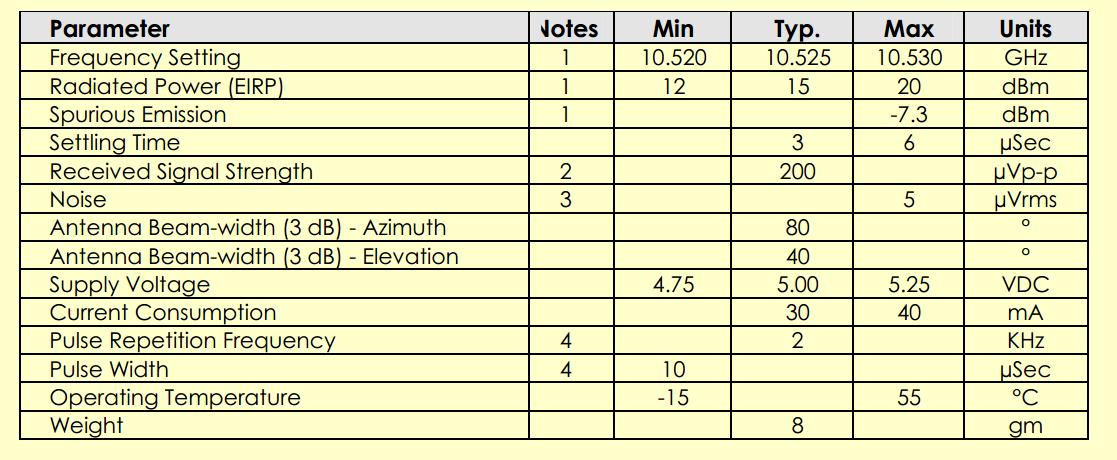

- Frequency: 10.525GHz
- Frequency Accuracy: 3MHz
- Minimum Output: 13dBm EIRP
- Operating Voltage: 5V ± 0.25V
- Operating current (CW): 60mA maximum, 37mA typical
- Harmonic emissions: -10dBm
- Detection Range: About 20 meters
- Output Power: 5mW

The device is sensitive to electrostatic discharge and may be damaged during welding.
The IF output is particularly sensitive.

You can check the damage with a multimeter in diode mode.
(IF and GND should be approximately 0.25 V).
